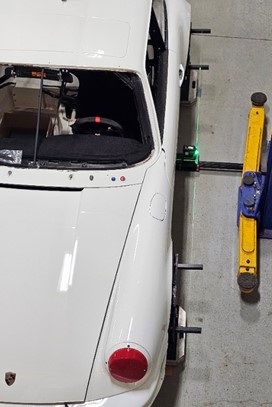

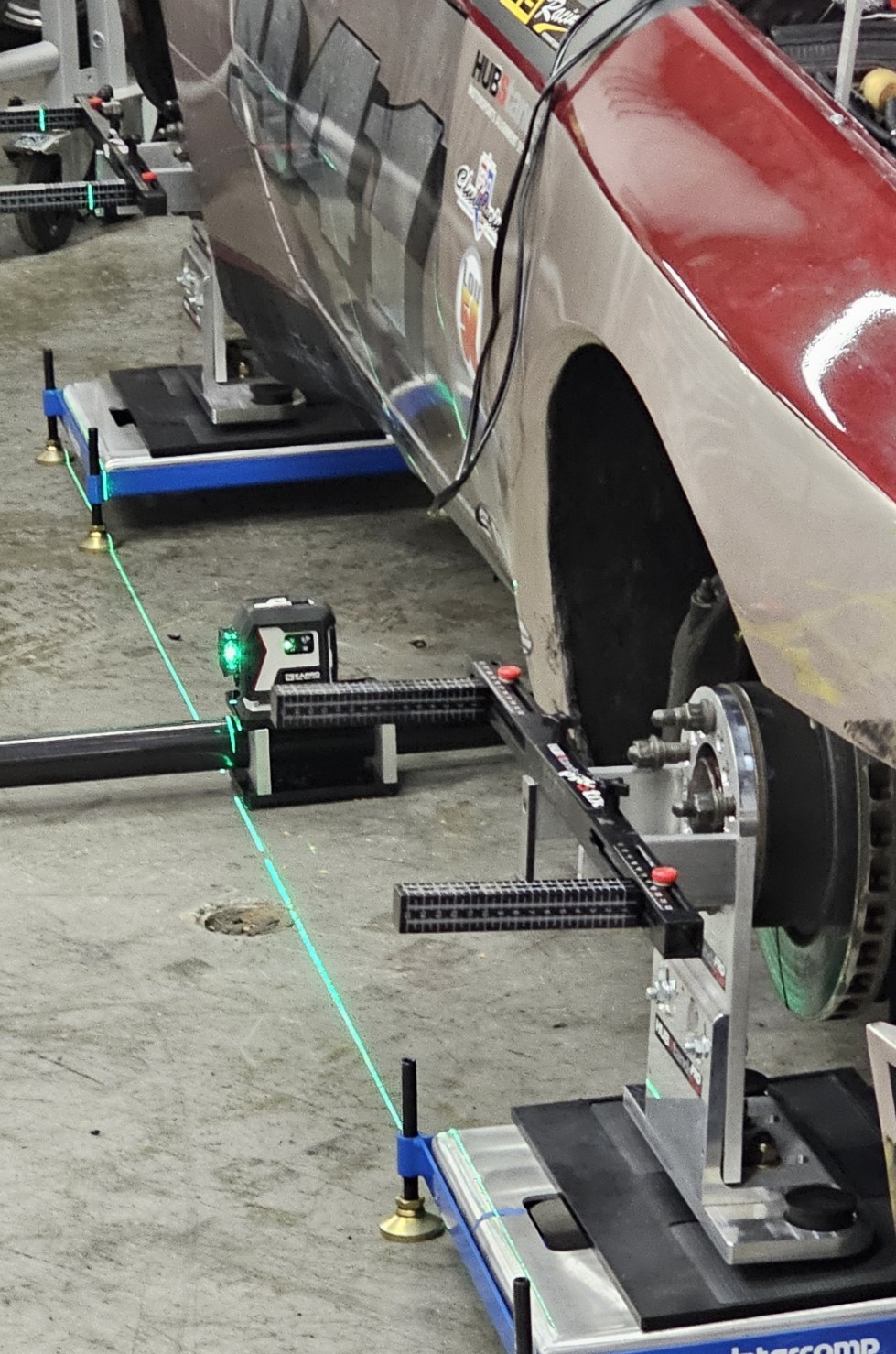

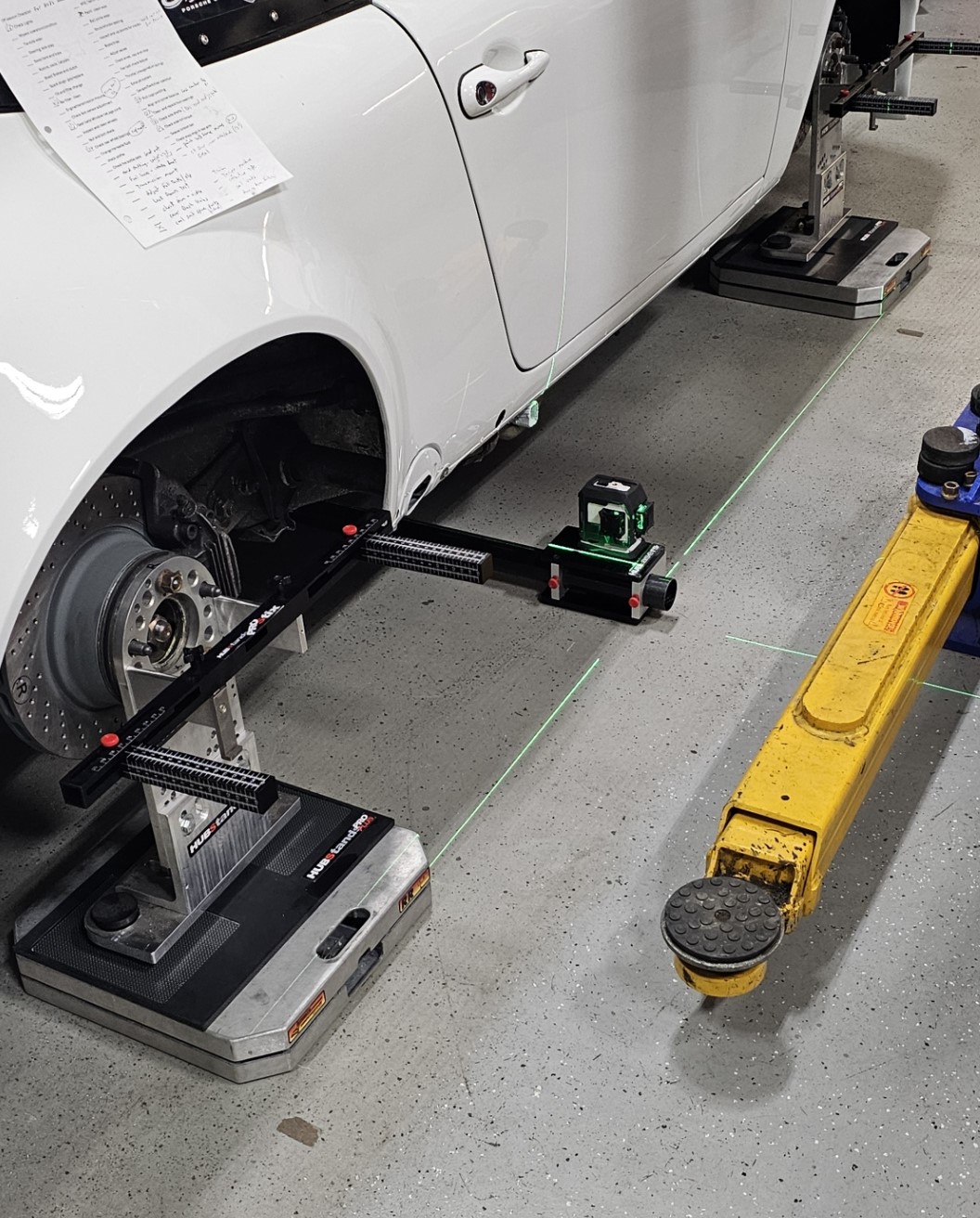

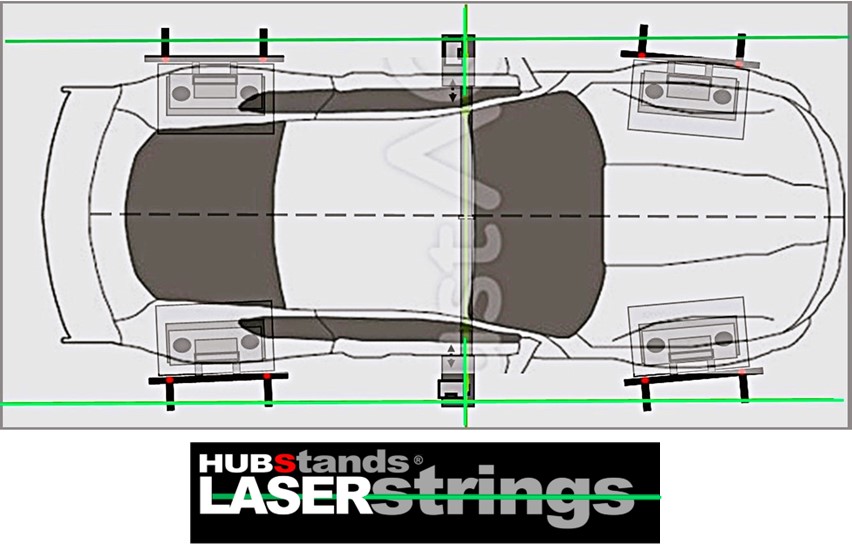

HUBStands LASERStrings replace the old school hanging metal frames and tangled strings with a pair of precision lasers. The HUBStands LASERStrings are a pair of 3 beam green lasers, mounted on machined positioning brackets and attached to a carbon fiber cross chassis tube. The freestanding LASERStrings slide under the car with a laser unit at each end and when positioned perpendicular to the chassis centerline, create a precision beam along both sides of the car. These parallel beams simulteanously illuminate the toe values on each corner of the car.

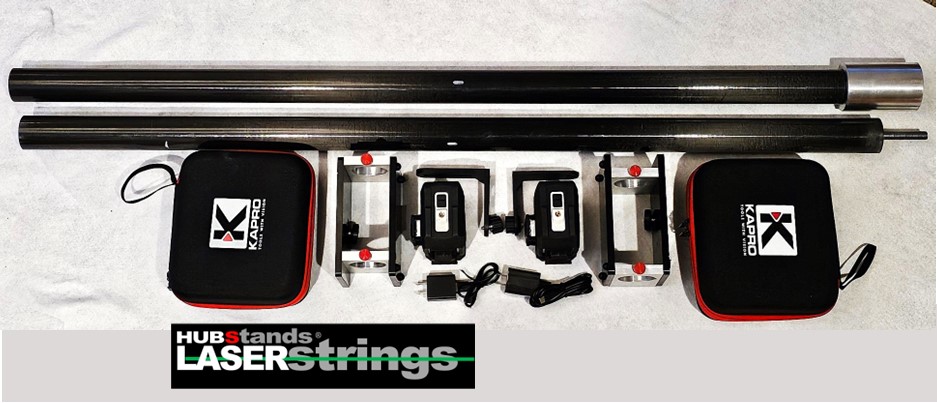

The LASERStrings are engineered to work with HUBStands ProSTIX and either our Pro or ProPLUS HUBStands alignment systems. Becasue they are freestanding and adjustable for chassis widths, they can be used on any race car with at least 3″ of clearance. They come with protective carrying cases for the laser units and for the carbon fiber chassis cross tubes.
HUBStands are made in the USA, in an AS9100 facility (aerospace certified); precision machined from 6061 aluminum and available to fit almost any race car, from GTLM’s to open wheel racers. They come complete as a set of four with stainless Toe Sticks and a choices of interchangeable multi-pattern Hub Plates.
