Replace hanging frames and tangled strings with a precision twin-laser system that simply slides under the car.

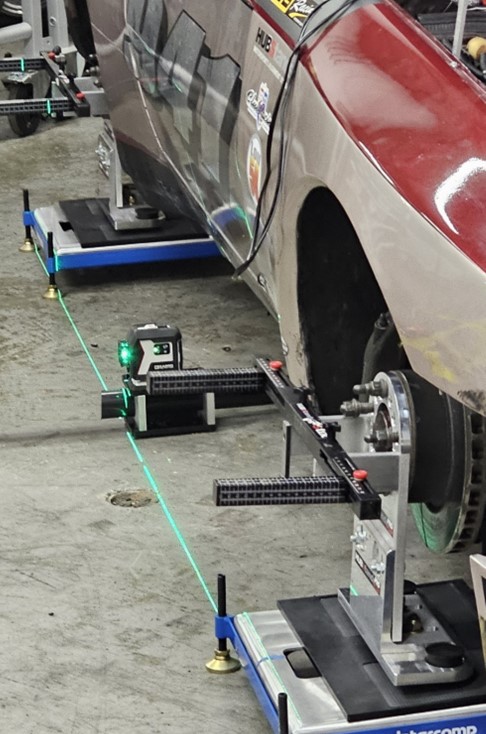

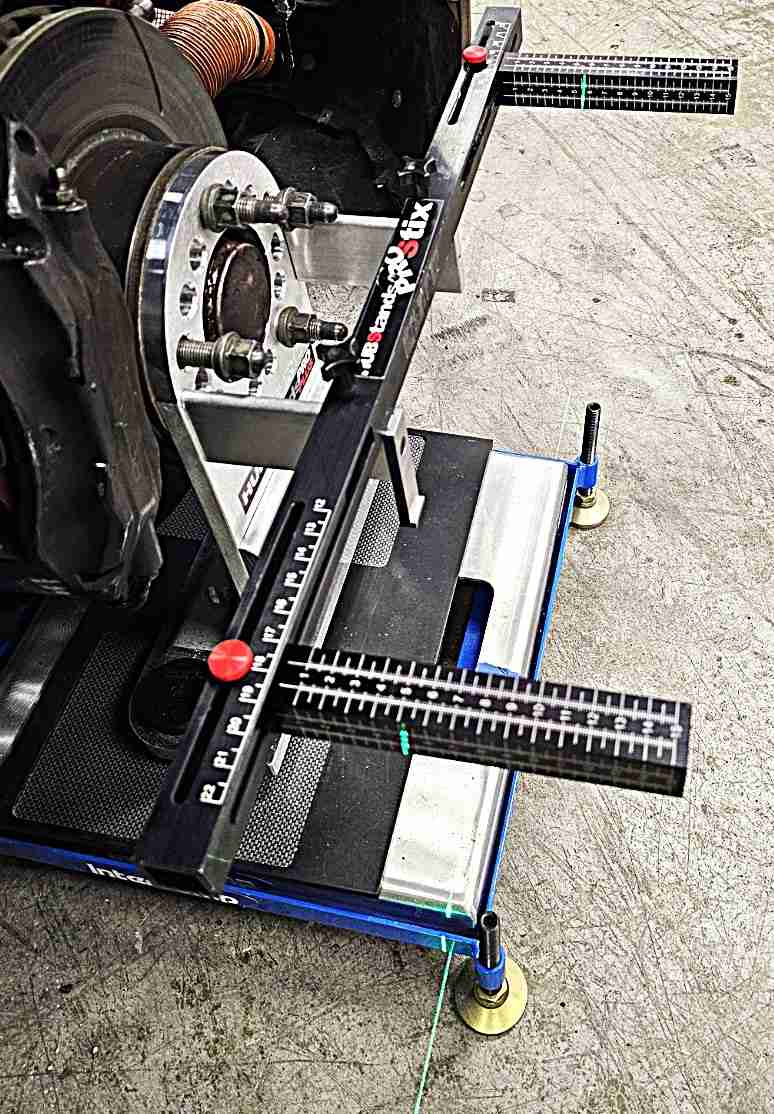

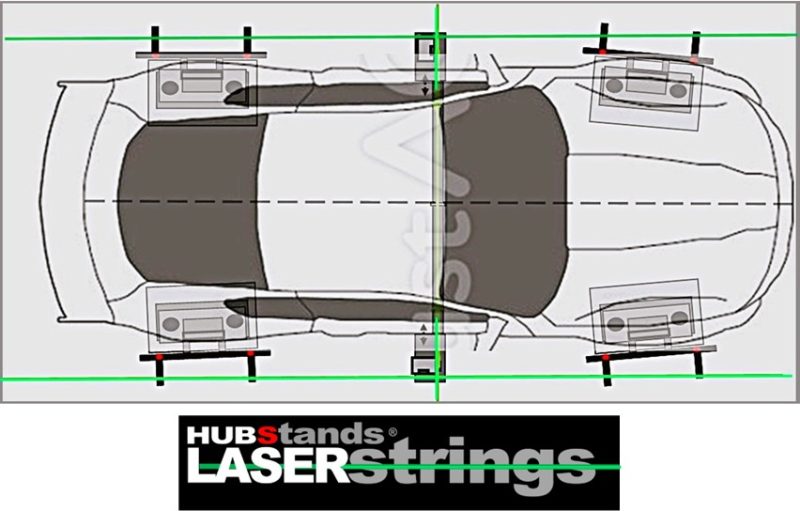

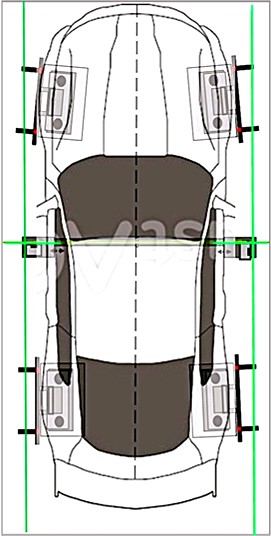

The HUBStands LASERStrings system is a pair of 3 beam green lasers mounted on precision adjustable brackets, one fitted at each end of a carbon fiber cross-chassis tube. The HUBStands LASERStrings system slides under the car with the lasers at each end projecting perfectly parallel beams along each side of the car and a perpendicular beam underneath the chassis. When the carbon fiber cross tube and beam is indexed perpendicular to the centerline of the car, the parallel alignment beams along each side of the car will be perfectly parallel to the chassis centerline. The parallel beams precisely illuminate the toe values at each corner of the car on our HUBStands mounted ProSTIX.
Position the LASERStrings square under a car and index them to that car, just once. With that specific reference position marked on the car; from then on, simply slide the LASERStrings under the car in the same indexed spot, turn them on and measure the toe at all four hubs. Simple.
The LASERStrings are engineered to work best with our HUBStands ProSTIX. Package pricing for LASERStrings with ProSTIX is available. Becasue the LASERStrings are freestanding and adjustable for varying chassis and track widths, a single set can be used on multiple race cars.

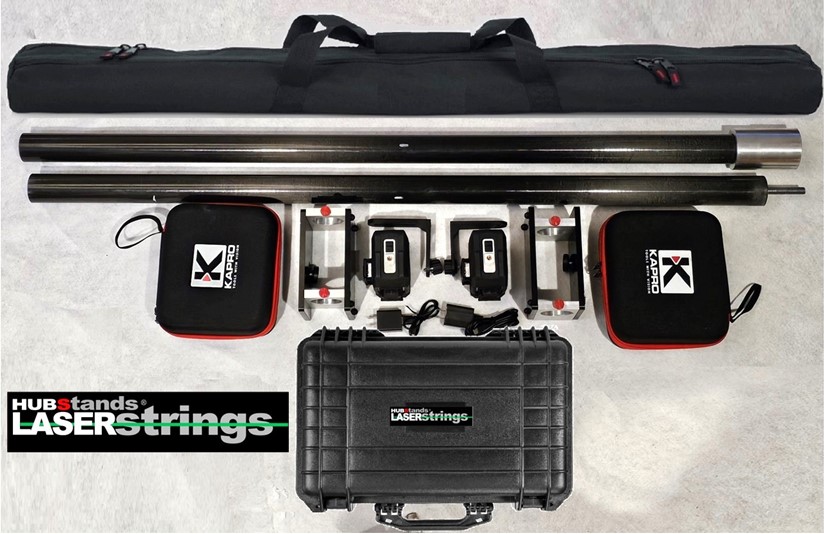

They come with protective carrying cases for the laser units and for the carbon fiber chassis cross tube.
HUBStands are made in the USA, in an AS9100 facility (aerospace certified); precision machined from 6061 aluminum and available to fit almost any race car, from GTLM’s to open wheel racers. They come complete as a set of four with stainless Toe Sticks and a choices of interchangeable multi-pattern Hub Plates.
